Implants | CMF

LevelOne fixation

The innovative LevelOne osteosynthesis system

With LevelOne, we offer you an innovative storage system for osteosynthesis. It consists of basic modules, storage modules as well as color-coded packs of screws which are filled individually and can be combined according to requirements.
They offer surgeons the option of choosing between preconfigured storage modules or configuring their own system. There are no limits to the configuration options.

LevelOne – a coherent approach, which has become indispensable in osteosynthesis.


The modules are designed for applications in the following anatomical areas or disciplines respectively:


  • LevelOne Cranium
  • LevelOne Midface
  • LevelOne Mandible
  • LevelOne Orthognathics

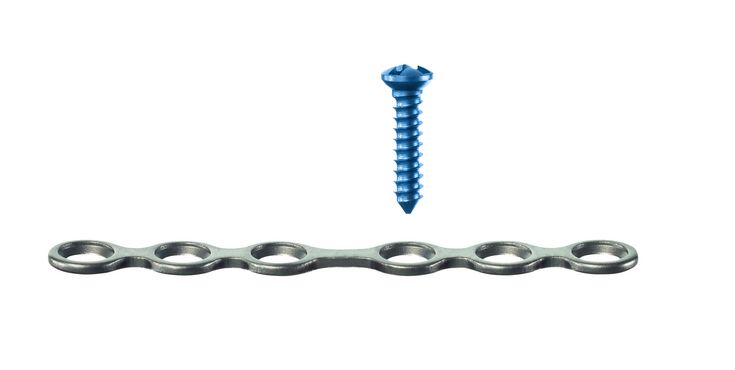

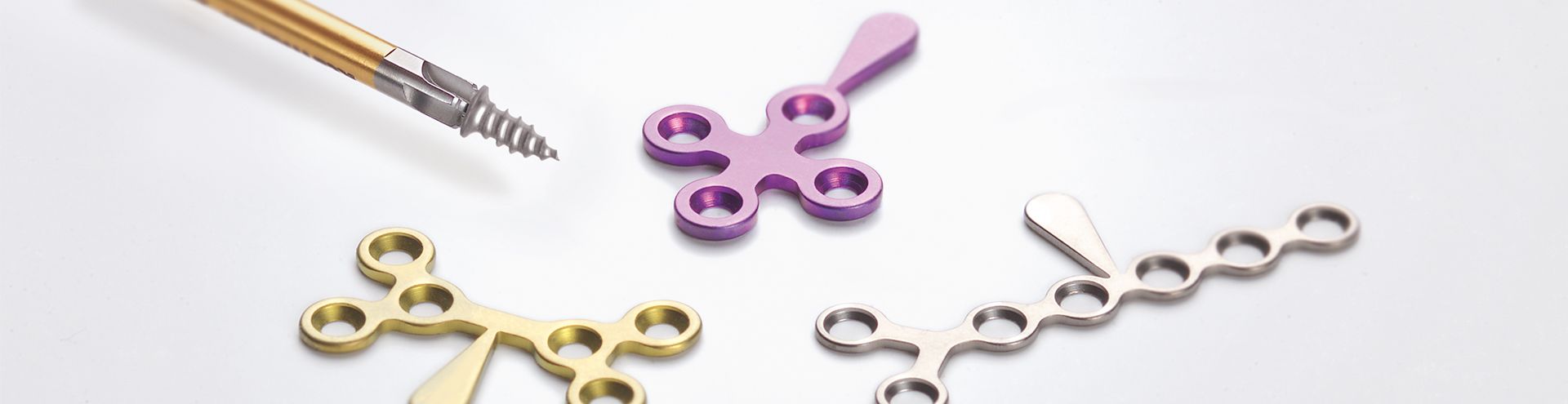

Plates and meshes

The LevelOne system provides plates and meshes for the entire area of the skull and is matched for the corresponding requirements:

  • Pure titanium plates and meshes in a large variety of profiles and shapes
  • "Rigid Blue" plates made of titanium alloy
  • Fixed-angle plates

Due to innovative tabs on every individual plate, traceability and identification are assured 100% without affecting the modularity of the LevelOne philosophy - even for the flattest profile.

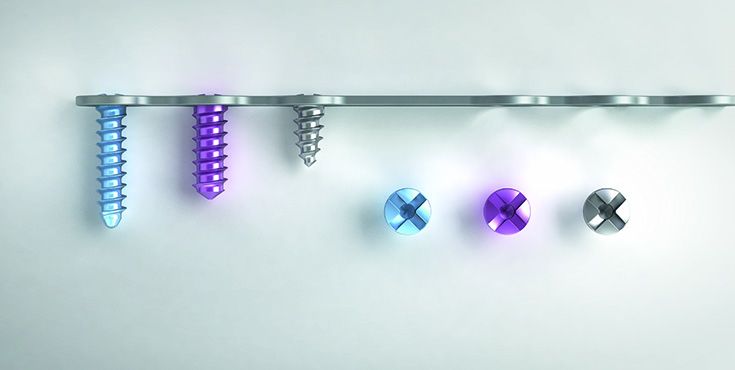

Screws

All screws are available in singles, 5-packs and 10-packs that make screw picking and reordering an easy process.

maxDrive® screws are available as standard, emergency and drill-free screws in a variety of diameters and lengths. All screws are color-coded for easy identification.

Instruments

Matched to the relevant applications, color-coded instruments are available in a large choice for easy and intuitive handling. In essence, this includes:

  • Screwdrivers and screwdriver blades
  • Bending and cutting instruments
  • Plate holding instruments
  • Drilling jigs and drills

Our LevelOne modules

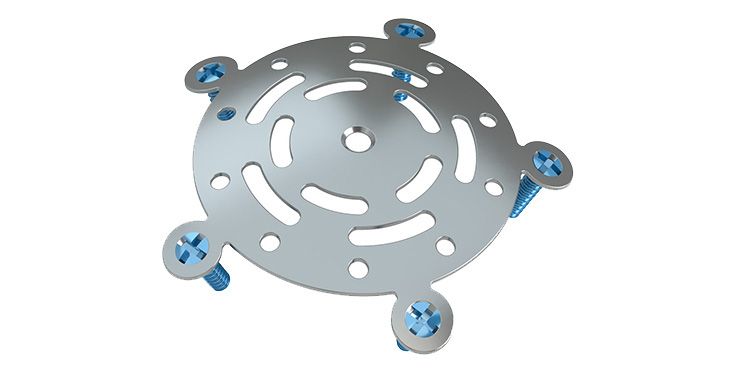

Cranium

Level One Fixation 1.0

Titanium implants for use in craniomaxillofacial osteosynthesis

Indications:

  • Neurosurgery
  • Frontal and maxillary sinus
  • Oral and preprosthetic surgery
  • Pediatric surgery

Features:

  • Plate profiles: 0.6 mm, 0.3 mm (Burr Hole Covers)
  • Mesh profiles: 0.1 mm, 0.2 mm, 0.3 mm, 0.6 mm
  • Screw diameter: 1.0 mm/ 1.2 mm

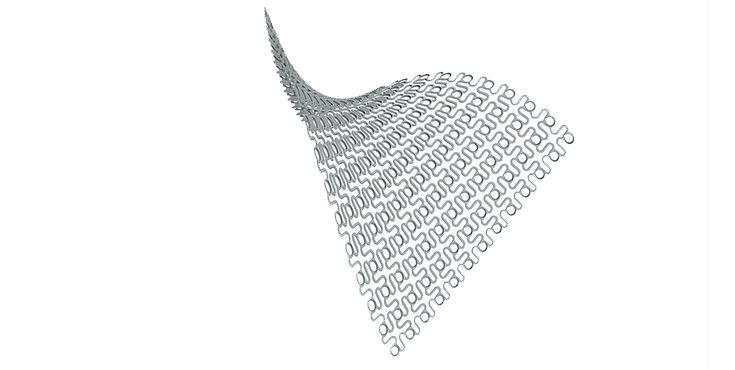

LevelOne 1.5

Level One Fixation 1.5 - Titanium implants for use in craniomaxillofacial osteosynthesis

Indications:

  • Neurosurgery
  • Frontal and maxillary sinus
  • Naso- and intra- orbital region
  • Fixation of bone grafts
  • Ortho-anchorage
  • Midfacial trauma

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 1.0 mm
  • Mesh profiles: 0.3 mm, 0.6 mm
  • Screw diameter: 1.5 mm/ 1.8 mm (Emergency Screw)

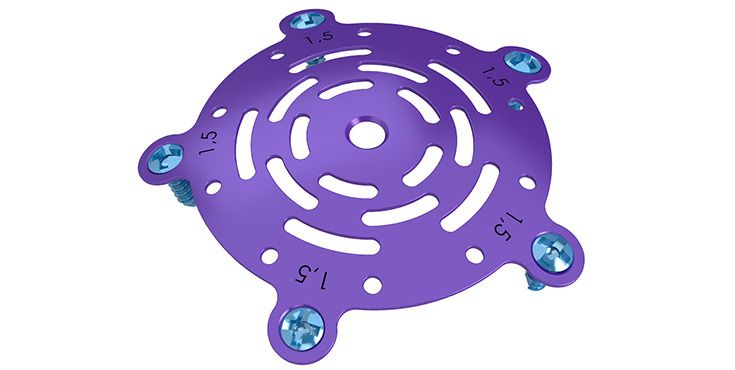

LevelOne Low Profile Neuro

Level One Fixation Low Profile Neuro - Titanium implants for use in Neurosurgery

Indications:

  • Craniotomies
  • Cranioplasties
  • Craniofacial surgery
  • Pediatric neurosurgery
  • Bony defects of mastoid, cranial, orbital and skull base regions
  • Neuro trauma

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm
  • Mesh profiles: 0.3 mm
  • Screw diameter: 1.5 mm Drill-free maxDrive Screws

Benefits:

  • 25% lower profile than our standard 1.5-mm system
  • Minimal palpability
  • Color coded system – purple plates

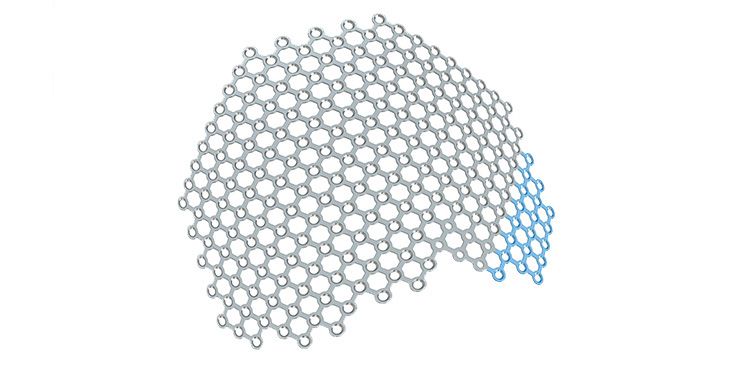

Standard Approach Mesh

Pre-contoured titanium mesh implants for use in cranial osteosynthesis

Indications:

  • Reconstruction of cranial defects

Features:

  • Mesh profile: 0.6 mm
  • Screw diameter: 1.5 mm Drill-free maxDrive Screws

Benefits:

  • Pre-contoured titanium mesh implants and templates for 11 standard neurosurgical approaches
  • Mesh sizes and shapes were created using a compilation of adult CT scans to develop the best possible “average” fit
  • Each implant comes with detachable identification tag to aid in orientation and to maximize inventory control

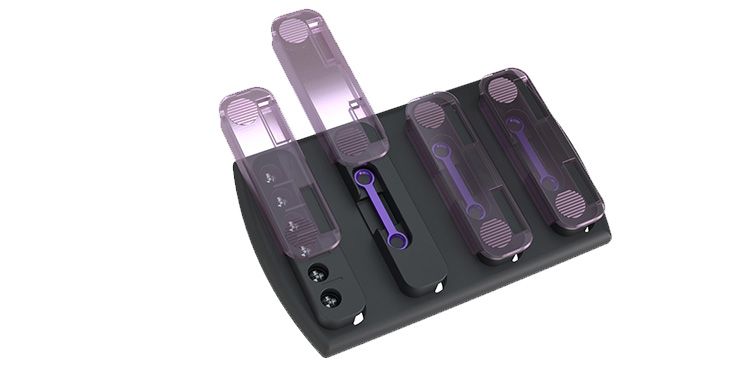

Sterile Neuro Flap Fix Kit

For the simple and stable fixation of cranial bone flaps and fractures

Features:

The sterile Neuro Flap Fix Kit includes:

  • 3x 2-hole low profile micro plates
  • 6x 1.5 mm maxDrive® screws, 4.0 mm long, self-drilling

Benefits:

  • Quick and simple, always ready to use
  • Guaranteed cleanliness and sterility
  • Complete traceability

Midface

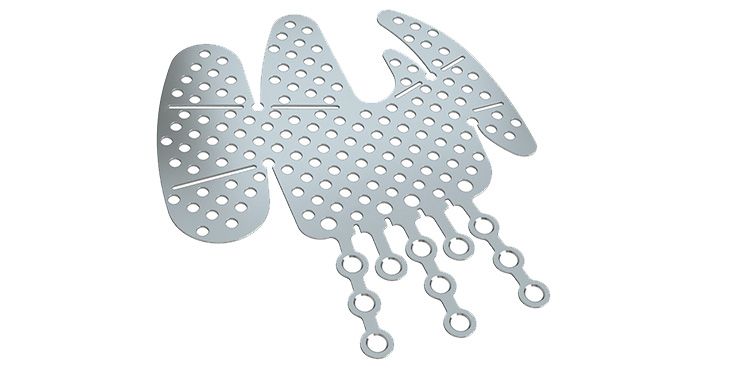

LevelOne 1.5

Titanium implants for use in craniomaxillofacial osteosynthesis

Indications:

  • Neurosurgery
  • Frontal and maxillary sinus
  • Naso- and intra- orbital region
  • Fixation of bone grafts
  • Ortho-anchorage
  • Midfacial trauma

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 1.0 mm
  • Mesh profiles: 0.3 mm, 0.6 mm
  • Screw diameter: 1.5 mm/ 1.8 mm (Emergency Screw)

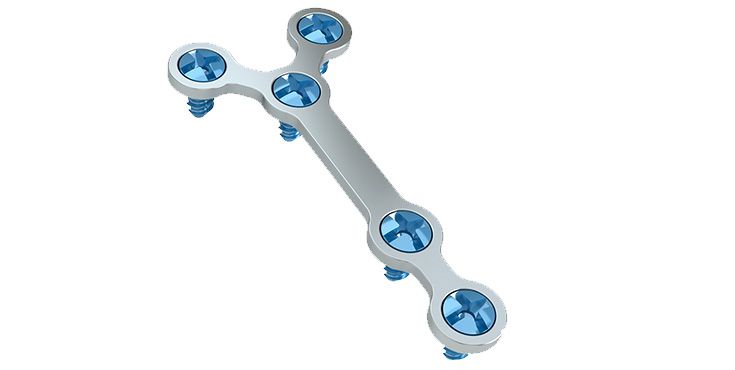

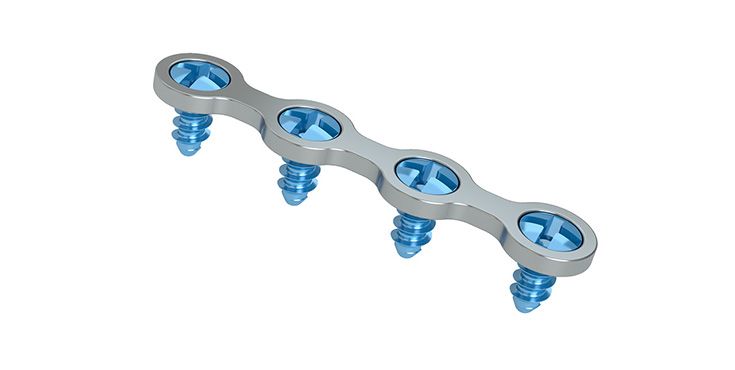

LevelOne 2.0

Titanium implants for use in craniomaxillofacial osteosynthesis

Indications:

  • Fixation of bone grafts
  • Primary and secondary reconstruction of mandibular defects
  • Mandibular fractures
  • Fractures in cranial high-load regions

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 0.7 mm, 0.8mm, 1.0 mm, 1.4 mm
  • Screw diameter: 2.0 mm/ 2.3 mm (Emergency Screw)

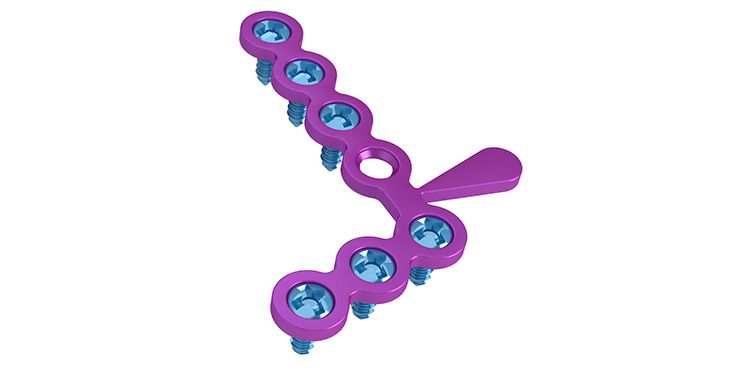

LevelOne Midface

Titanium implants for use in maxillofacial osteosynthesis

Indications:

Use in the repair and the reconstruction of the craniofacial skeleton due to trauma, especially for the osteosynthesis of

  • Le Fort planes
  • Naso- and intra-orbital region
  • Orbital rim
  • Zygomatic complex
  • Frontal and maxillary sinus

Features:

  • Plate profiles: 0.6 mm, 0.8 mm, 1.0 mm
  • Screw diameter: 1.5 mm / 1.8 mm (Emergency Screw) maxDrive Screws

Benefits:

  • maxDrive® 1.5 mm micro screws can be used with one single blade for all available plate profiles
  • Color codation - 11 different plate shapes in 3 different colors according to their thickness facilitate selection
  • All plates are provided with a tab for secure grip, easy placement and full traceability thanks to marked lot numbers on the plates’ surfaces
  • Thanks to plate hole countersinks on the both L-plate sides, plates can be used on the left or the right side of the patient. Inventory is considerably reduced
  • A complete set of standardized instruments for easy contouring, cutting instruments and insertion of the plates is provided within the set

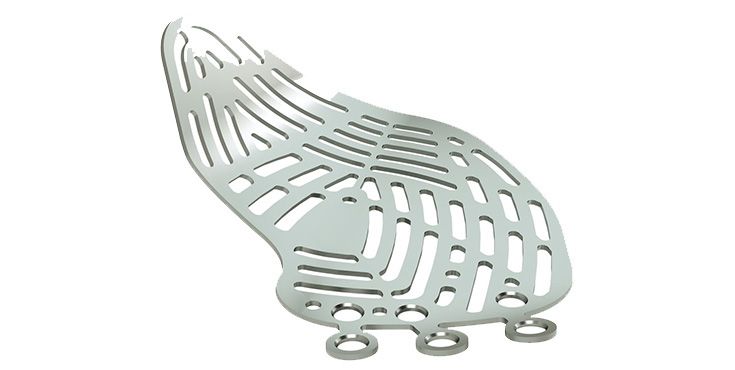

Orbital Trauma Concept - Titanium and resorbable implants for orbital reconstruction

Features:

  • Different plate designs for orbital defects of class I, II, III, IV

Benefits:

  • The trauma section of Strasbourg Osteosynthesis Research Group (S.O.R.G.) has evaluated treatment principles according to size and extension of the fracture site based on the recognized classification of Jaquiéry et al.
  • Additional instruments and tools are there to aid reconstruction in the operating room.
  • The optimized S.O.R.G. orbita floor implant offers a considerable support to the eye globe. Various cutting options allow uneventful adjustment of the implant. The implant can be applied on both sides of the orbit. In cases with lacking bony support, the central medial bar can be seated posteriorly in order to additionally stabilize the position of the eye.

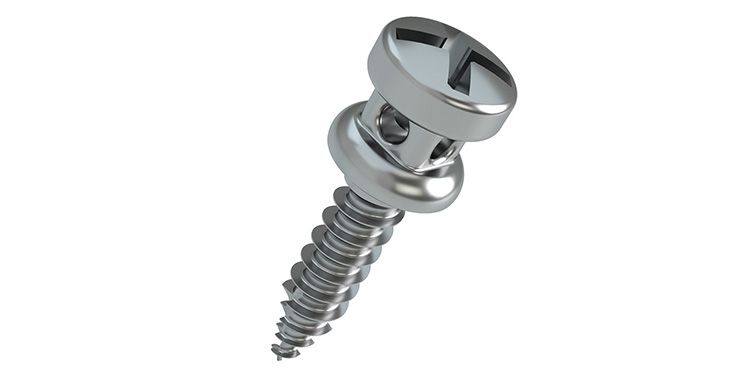

MMF Screws – for Maxillomandibular Fixation

Indications:

The KLS Martin MMF Screws are intended for use in maxillomandibular fixation (MMF) to provide stabilization of fractures of the maxilla, mandible or both.

Features:

  • Screw Diameter 2.0 mm
  • Screws available in different lengths

Benefits:

  • As the screws are self-drilling, there is no need to pre-drill - the risk to hurt tooth roots is thus minimized
  • For highest stability, the MMF screws are also available made from steel
  • Groove under screwhead secures wires or elastics

Mandible

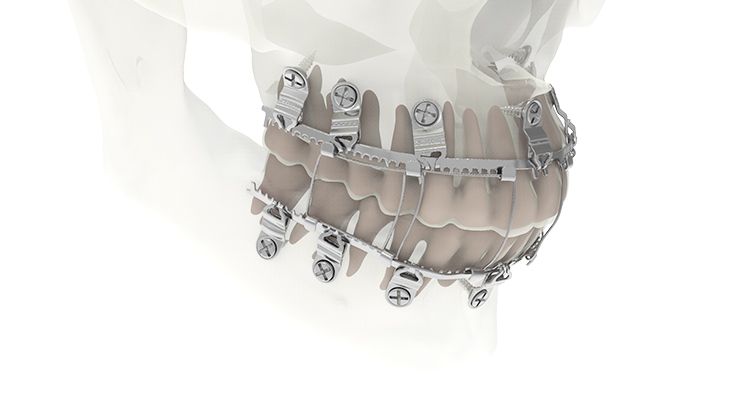

L1 MMF

Indications:

The KLS Martin® L1 MMF system is intended for temporary stabilization of mandibular and maxillary fractures. It is designed to maintain proper occlusion during intraoperative bone fixation and postoperative bone healing (app. 6 - 8 weeks). It is indicated for the temporary treatment of maxillomandibular fixation (MMF) in adults or adolescents who have permanent teeth present (ages 12 and older).

Features:

  • Reverse thread screws to protect gingiva

  • Fixed midline

  • 7-hole and 9-hole plate options

Benefits:

  • Allows you to work around the tooth roots without compromising strength

MMF Screws – for Maxillomandibular Fixation

Indications:

The KLS Martin MMF Screws are intended for use in maxillomandibular fixation (MMF) to provide stabilization of fractures of the maxilla, mandible or both.

Features:

  • Screw Diameter 2.0 mm
  • Screws available in different lengths

Benefits:

  • As the screws are self-drilling, there is no need to pre-drill - the risk to hurt tooth roots is thus minimized
  • For highest stability, the MMF screws are also available made from steel
  • Groove under screwhead secures wires or elastics

LevelOne 2.0

Titanium implants for use in craniomaxillofacial osteosynthesis.

Indications:

  • Fixation of bone grafts
  • Primary and secondary reconstruction of mandibular defects
  • Mandibular fractures
  • Fractures in cranial high-load regions

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 0.7 mm, 0.8mm, 1.0 mm, 1.4 mm
  • Screw diameter: 2.0 mm/ 2.3 mm (Emergency Screw)

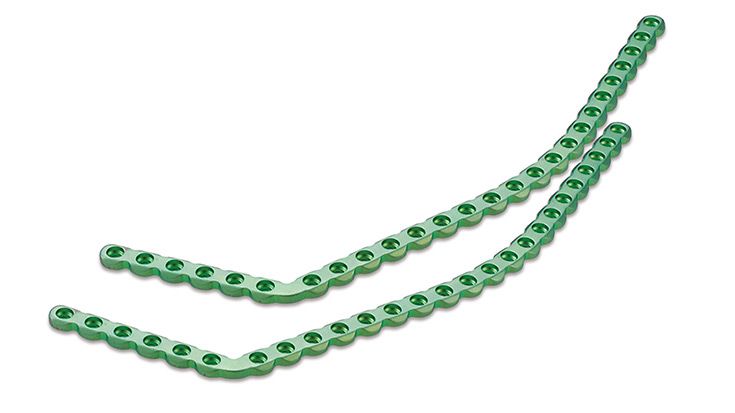

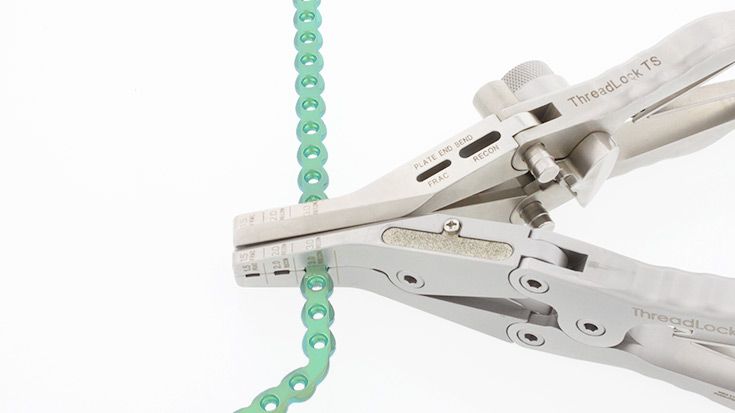

ThreadLock TS 2.0 - 2.7

Multidirectional Locking Plate System for use in craniomaxillofacial osteosynthesis

Indications:

  • Locking fracture management
  • Stable mandibular reconstruction
  • Fixation of bone grafts
  • Primary and secondary reconstructions
  • Complex mandibular fractures

Features:

  • Plate profiles: 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 2.8 mm, 3.0 mm
  • Screw diameter: 2.0 mm, 2.3 mm, 2.7 mm (Standard Screws or Locking Screws)

Benefits:

  • Screws can lock in plates with up to 20º of angulation in each direction
  • All locking plates and screws are colored green
  • All plates can accept locking as well as non-locking screws
  • System includes drill guide for all plate sizes

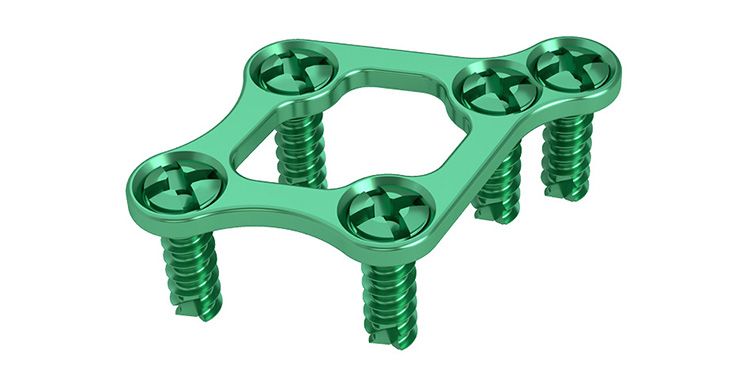

Rhombic 3D

Three-dimensional titanium implants for optimal treatment of condylar fractures

Indications:

  • Surgical treatment of deep, medium and high condylar fractures

Features:

  • Plate profile: 1.0 mm
  • Screw diameter: 2.0 mm / 2.3 mm (Standard Screws or Locking Screws)

Benefits:

  • The rhombic shape of the plate takes account of the great variety of pressure and tensile forces involved in the masticatory process, thus ensuring rigid, torsionresistant osteosynthesis
  • Thanks to the rhomboidal lightweight design, the plate provides a central window for perfect control of the fracture gap after reduction
  • Closely positioned screw holes in the cranial part of the plate allow you to place the osteosynthesis screws securely even where space is very limited

Orthognathics

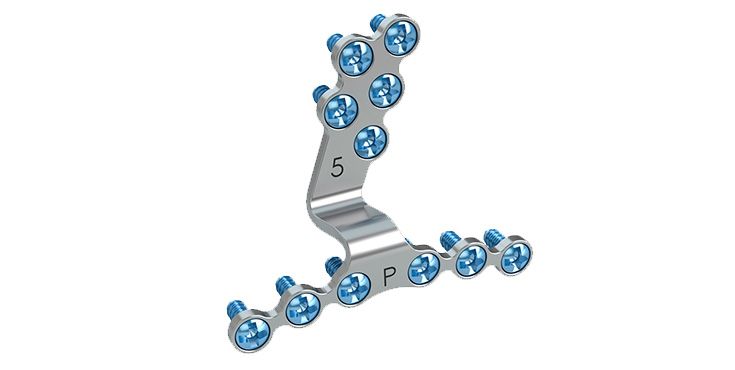

LevelOne 1.5

Titanium implants for use in craniomaxillofacial osteosynthesis

Common Uses:

  • Neurosurgery
  • Frontal and maxillary sinus
  • Naso- and intra- orbital region
  • Fixation of bone grafts
  • Ortho-anchorage
  • Midfacial trauma
  • Orthognathic Lefort Surgery

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 1.0 mm
  • Mesh profiles: 0.3 mm, 0.6 mm
  • Screw diameter: 1.5 mm/ 1.8 mm (Emergency Screw)

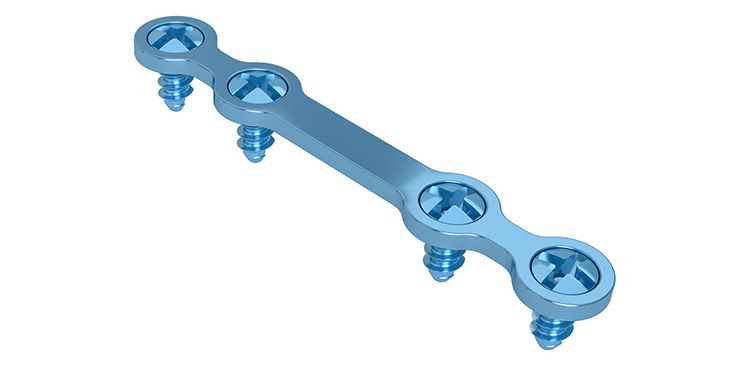

LevelOne 2.0

Titanium implants for use in craniomaxillofacial osteosynthesis

Common Uses:

Fixation of bone grafts

  • Primary and secondary reconstruction of mandibular defects
  • Mandibular fractures
  • Fractures in cranial high-load regions

Features:

  • Plate profiles: 0.3 mm (Burr Hole Covers), 0.6 mm, 0.7 mm, 0.8mm, 1.0 mm, 1.4 mm
  • Screw diameter: 2.0 mm/ 2.3 mm (Emergency Screw)

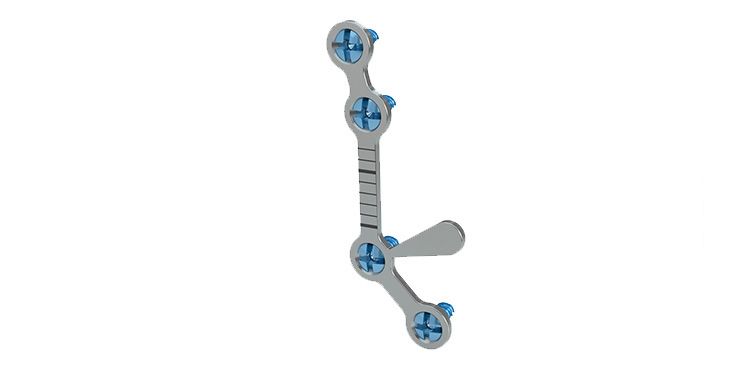

FAB-Orthognathic-System

FAB Orthognathic System - Titanium implants and instruments for use in orthognathic surgery

Common Uses:

  • The FAB Plates are commonly used for titanium osteosynthesis in orthognathic surgery cases

Features:

  • Plate profiles: 0.8 mm, 1.0 mm
  • Screw diameter: 2.0 mm / 2.3 mm (Emergency Screw)

Benefits:

  • A system of instruments, plates, and screws to improve surgery outcomes
  • Plates designed to place screws into the thickest bone with minimal bending
  • All plates designed for strength across osteotomies
  • No empty screw holes span osteotomy sites
  • All plates are reversible – can be used on left or right side
  • All plates have carry tabs to allow direct placement on the bone for passive fitting

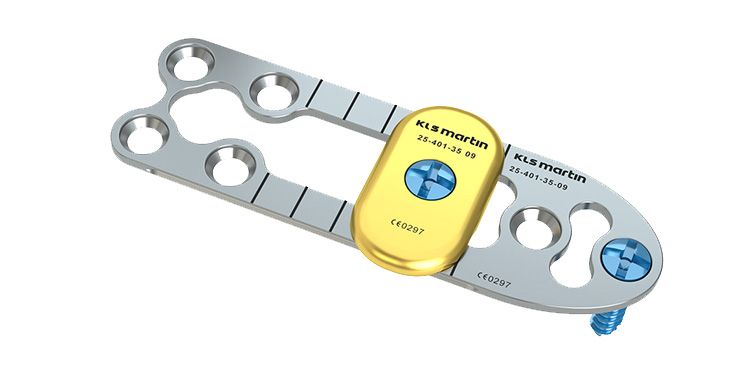

BSSO Sliding Plate

To support accurate mandibular advancement or setback following bilateral sagittal split osteotomy (BSSO)

Common Uses:

The BSSO Plate is commonly used for mandibular advancement or setback following bilateral sagittal split osteotomy (BSSO)

Features:

  • Plate profiles: 0.8 mm
  • Screw diameter: 2.0 mm / 2.3 mm
  • Maximum advancement: 11 mm, 16 mm, 21 mm

Benefits:

  • Optimized design for improved flexibility and simultaneous high degree of stability
  • Gradual control of mandibular displacement
  • Stable osteosynthesis following displacement
  • Removable slider secured against loss

MMF Screws – for Maxillomandibular Fixation

Indications:

The KLS Martin MMF Screws are intended for use in maxillomandibular fixation (MMF) to provide stabilization of fractures of the maxilla, mandible or both.

Features:

  • Screw Diameter 2.0 mm
  • Screws available in different lengths

Benefits:

  • As the screws are self-drilling, there is no need to pre-drill - the risk to hurt tooth roots is thus minimized
  • For highest stability, the MMF screws are also available made from steel
  • Groove under screwhead secures wires or elastics
