Art. No. 80-040-12-04

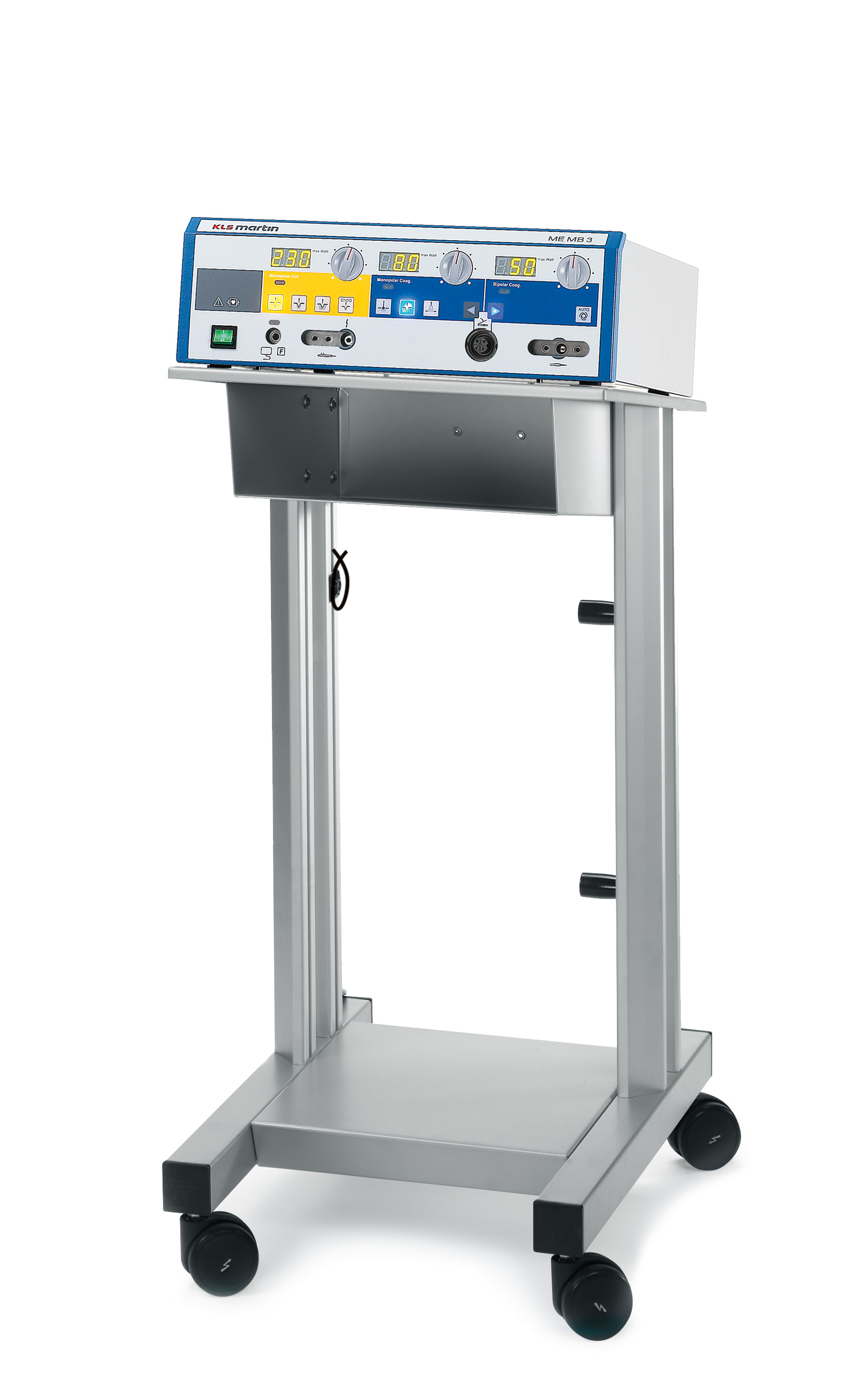

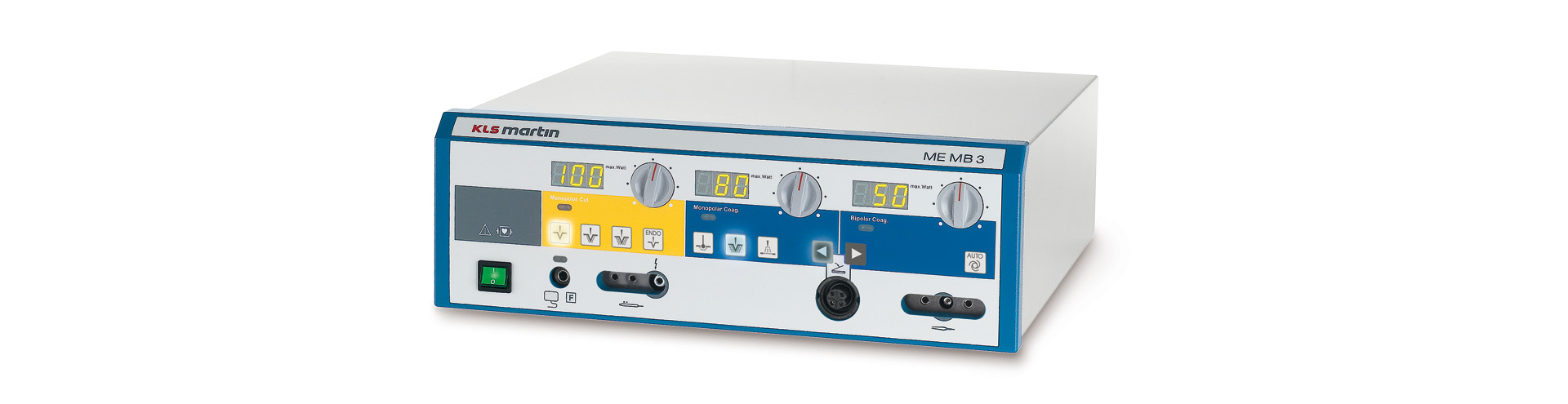

ME MB 3 i version

Item number	80-040-12-04
Weight without packaging	12.6 kg
Sterility	non sterile
Single use product	Re-Use
UDI-DI (GTIN) of the sales unit	4057605389647
Serial number guided	Yes
Batch number guided	No
Sales unit of measure	Piece

Height	135 mm
Width	405 mm
Depth	380 mm

Working channels	With module for international accessories
Power connection	220 V-240 V, 50-60 Hz
Nominal frequency	450 kHz
Mains fuse	4 A
Mains current	4 A
Power consumption in standby mode	26 W
Max. power consumption	800 W
Classification	IIb
Protection class	I
Type of applied part	Defibrillation-proof
Leakage currents	LF and HF in compliance with IEC 60601-1 and 2-2
Modulation frequency	30 kHz
Power	Max. 400 Watt at 300 Ohm
Crest factor	Min. 1.6 Watt at max. 300 Ohm
Voltage	Min. 600 Vss
Sound level	HF current activation: 40 - 65 dB (adjustable)
IP classification	IP2X
Operating mode	Intermittent INT 10 s / 30 s corresponds to 25% ED
Signal level	HF-display: 55 dBA, (adjustable 40 - 65 dB on the back of the device)
Radio interference suppression	Limit values according to EN 55011, radio interference immunity according to IEC 801

Article text	ME MB 3 i version
Safety systems	Patient Control System (PCS)
Current type	Super Blend
Version	i version
Application possibilities	Monopolar cutting

Brochures	90-302-48-10 Accessories for electrosurgery catalog
Technical accompanying documents	Instructions for use
