Art. No. 80-042-00-04

maXium® m-version with a socket module for KLS Martin accessories

Item number	80-042-00-04
Weight without packaging	12.8 kg
Sterility	non sterile
Single use product	Re-Use
UDI-DI (GTIN) of the sales unit	4057605029413
Serial number guided	Yes
Batch number guided	No
Sales unit of measure	Piece

Height	182 mm
Width	390 mm
Depth	436 mm

Working channels	With module for KLS Martin accessories
Power connection	100 V-240 V +/-10 %
Nominal frequency	300/400/600 kHz
Mains fuse	6.3 A
Mains current	6.3 A
Power consumption in standby mode	40 W
Max. power consumption	600 W
Max. cutting performance	360 W
Max. coagulation capacity	320 W
Classification	IIb
Protection class	I according to EN 60601-1
Type of applied part	Defibrillation-proof
Mark of conformity	CE 0297

Article text	maXium® m-version with a socket module for KLS Martin accessories
Safety systems	Patient Control System (PCS)
Current type	Uro Pure Cut
Version	m version
Application possibilities	Monopolar cutting

Brochures	90-243-02-10 marLap Safe and easy operating with the KLS Martin bipolar instruments 90-288-02-11 maXium Innovative technology in white 91-350-08-02 TwinPad II 90-302-48-10 Accessories for electrosurgery catalog
Technical accompanying documents	Instructions for use

Videos

maXium® and marClamp® in hysterectomy | Part 2

maXium® and marClamp® in hysterectomy | Part 2

maXium® and marClamp® in hysterectomy | Part 1

maXium® and marClamp® in hysterectomy | Part 1

maXium® | Bipolare TUR

maXium® | Bipolare TUR

Handling video | maxium®

Handling video | maxium®

These products are included in the set

Art. No. Quantity in the set: 1

Art. No. 80-093-04-04 Gastro (current forms Polyp I, II, Papilla I, II, III and Endoscopic Submucosal Dissection - ESD) Quantity in the set: 1

These products match the selected product

Art. No. 80-092-00-04 Cable set for software update - maXium® / maXium® B

Art. No. 80-093-00-04 In contrast to classic monopolar TUR, which uses an electrically non-conductive rinsing fluid (sorbitol-mannitol-sugar solution), bipolar TUR uses an electrically conductive NaCl solution as the rinsing fluid.

80-294-40-04

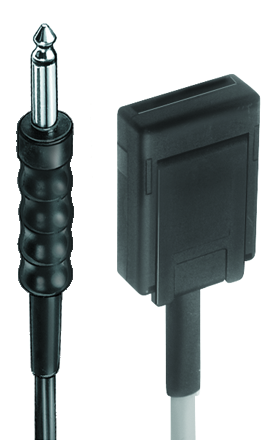

Art. No. 80-294-40-04 Connection cable for neutral electrodes, length 4 m, KLS Martin

80-342-07-04

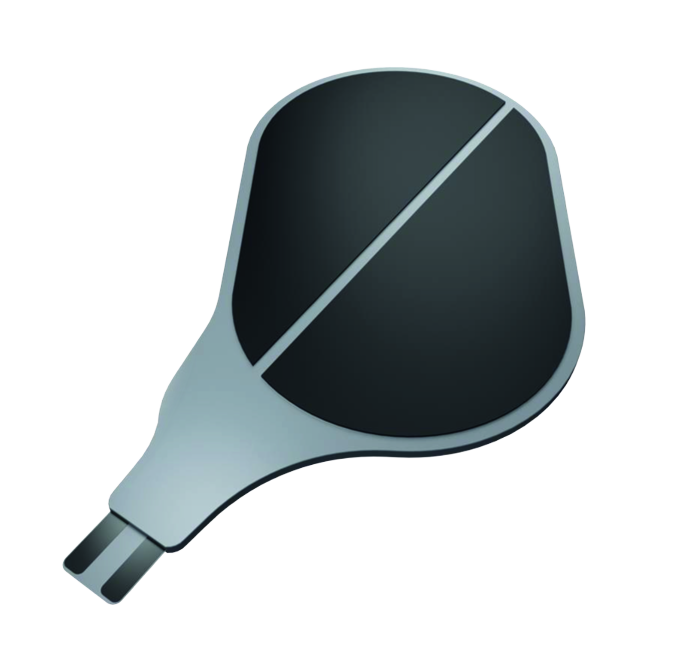

Art. No. 80-342-07-04 Twin-Pad II neutral electrode with two contact surfaces (split), contact surface 200 cm², without connection cable

80-344-09-04

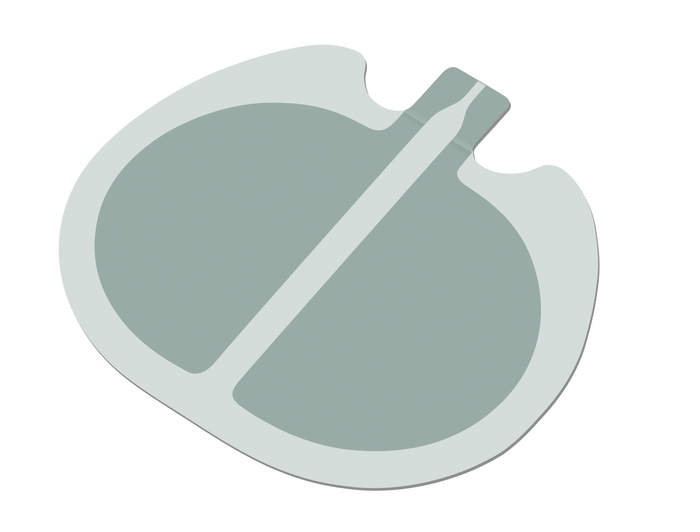

Art. No. 80-344-09-04 PCS DuoSafe disposable neutral electrode for adults and children, split contact surface 107 cm², without connection cable, 50 items/pack

80-811-30-04

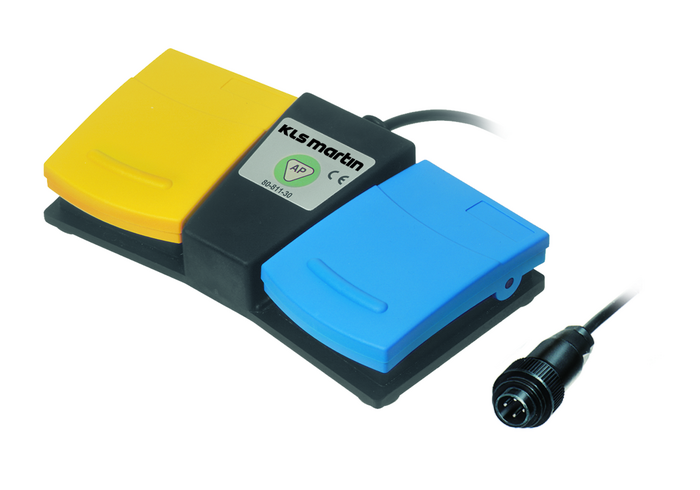

Art. No. 80-811-30-04 Double-pedal foot switch, 4-pin plug, cable length 5 m

80-811-32-04

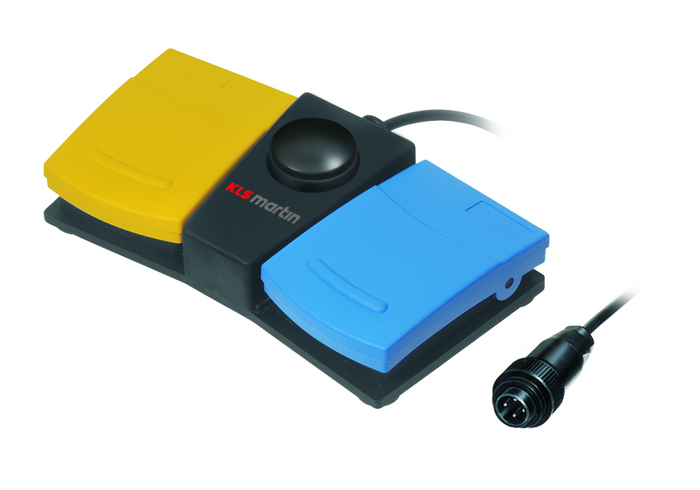

Art. No. 80-811-32-04 maXium® double-pedal foot switch with SWAP mode Eco, 4-pin plug, cable length 5 m

80-811-50-04

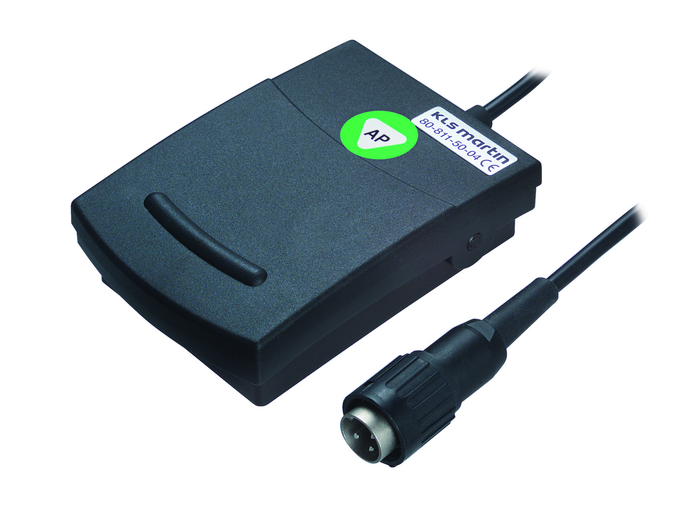

Art. No. 80-811-50-04 Single-pedal foot switch, 3-pin plug, cable length 5 m

80-830-00-04

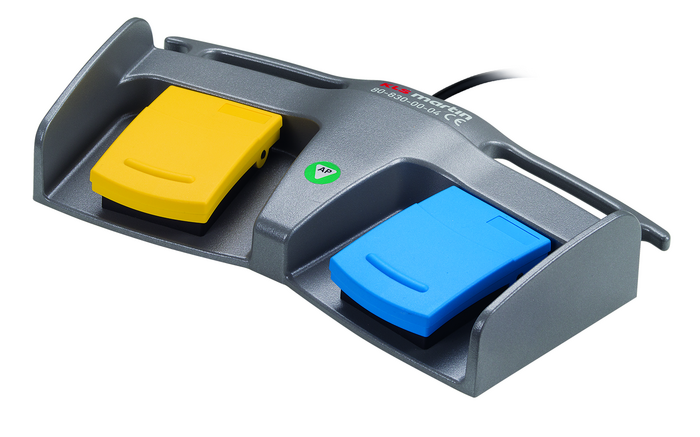

Art. No. 80-830-00-04 Double-pedal foot switch, 4-pin plug, cable length 5 m

80-830-01-04

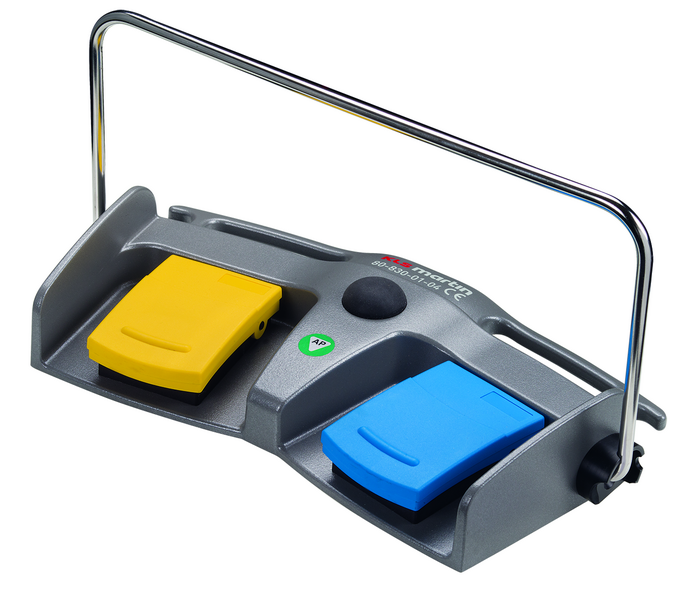

Art. No. 80-830-01-04 SWAP mode double-pedal foot switch, with bow, 4-pin plug, cable length 5 m

80-830-02-04

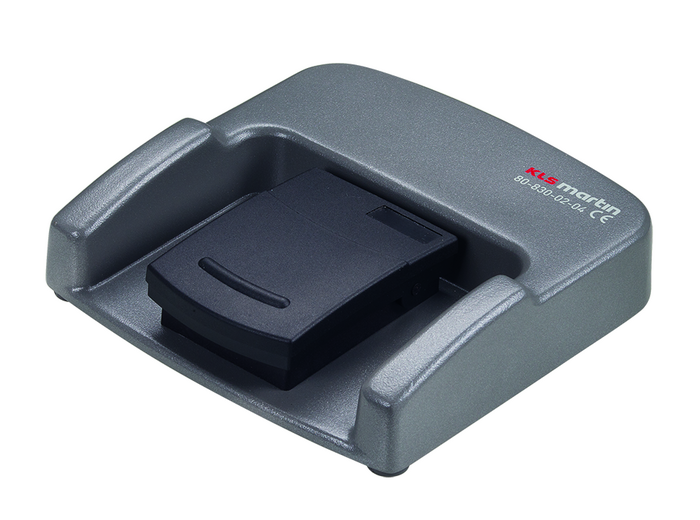

Art. No. 80-830-02-04 Single-pedal foot switch, 3-pin plug, cable length 5 m

80-830-04-04

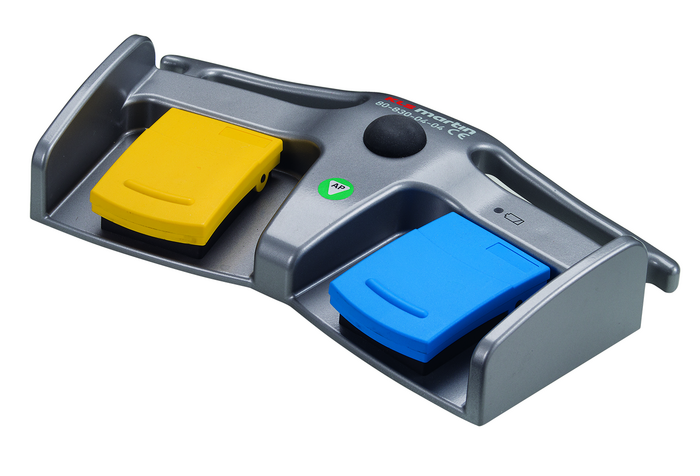

Art. No. 80-830-04-04 SWAP mode double-pedal foot switch, wireless, IP X8, immersible
