Art. No. 80-051-00-04

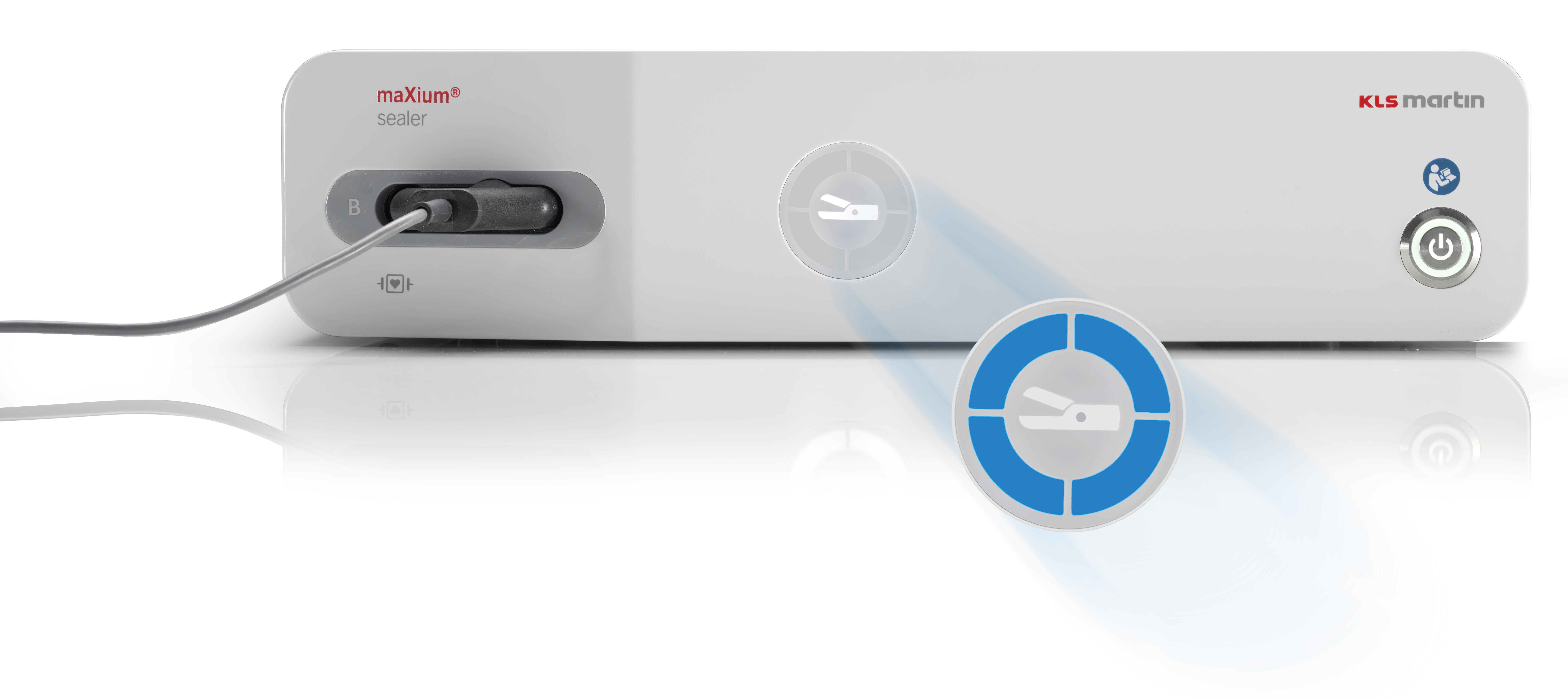

maXium® sealer

Item number	80-051-00-04
Weight without packaging	7.1 kg
Sterility	non sterile
Single use product	Re-Use
UDI-DI (GTIN) of the sales unit	4057605955897
Serial number guided	Yes
Batch number guided	No
Sales unit of measure	Piece

Height	95 mm
Width	390 mm
Depth	466 mm

Working channels	Bipolar HF output
Power connection	100 – 240 V~; 50/60 Hz
Mains fuse	4 A
Mains current	4 A
Max. power consumption	304 W
Max. coagulation capacity	250 W
Classification	IIb
Protection class	I
Type of applied part	Defibrillation-proof
Mark of conformity	CE 0297
Leakage currents	LF and HF in compliance with IEC 60601-1 and 2-2
Power	250 W
Crest factor	1.5-1.6
IP classification	IP2X
Operating mode	Intermittent INT 10 s / 30 s corresponds to 25% ED
Signal level	HF-display: 55 dBA, (adjustable 40 - 65 dB on the back of the device)
Rated load	50 Ω
Fundamental frequency	368-500 kHz
HF output current at rated load	1100 mA

Article text	maXium® sealer
Safety systems	Error log
Version	Standalone unit
Application possibilities	Bipolar cutting and coagulation
Electrosurgery output power	250 Vp

Technical accompanying documents	Instructions for use

These products match the selected product

08-024-00-23

Art. No. 08-024-00-23 Mains cable, type E/F, for ex. for Germany, France, Austria, Scandinavia, Korea, cable length 3 m

08-024-00-29

Art. No. 08-024-00-29 Mains cable, type B, ex. for Taiwan, USA, Canada, cable length 2 m

08-024-00-30

Art. No. 08-024-00-30 Mains cable, type L, ex. for Italy, cable length 2.5 m

08-024-00-40

Art. No. 08-024-00-40 Mains cable, type G, ex. for Great Britain, Ireland, United Arab Emirates, cable length 1.8 m

08-024-00-41

Art. No. 08-024-00-41 Mains cable, type I, ex. for China, cable length 2.5 m

08-024-00-85

Art. No. 08-024-00-85 Mains cable, type B, ex. for Japan, Hospital Grade, cable length 5 m

You might also be interested in these products

80-975-18-04

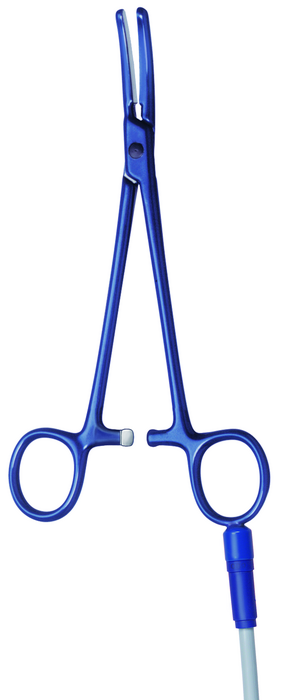

Art. No. 80-975-18-04 marClamp, curved Version, length 18 cm

80-977-23-04

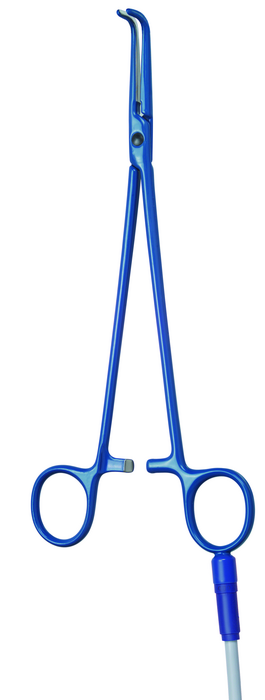

Art. No. 80-977-23-04 marClamp, Kalem, length 24.5 cm
