Art. No. 80-060-00-04

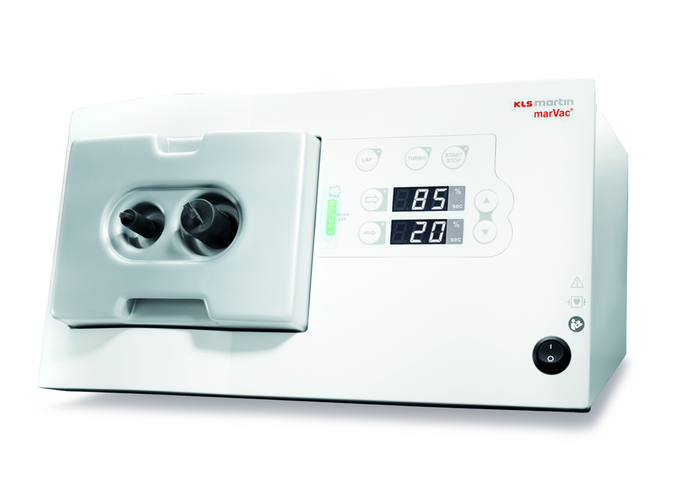

marVac® smoke evacuator, 220–240 V, incl. main filter (item no. 80-060-01-04) and connection kit for major electrosurgery units

Item number	80-060-00-04
Weight without packaging	13.8 kg
Sterility	non sterile
Single use product	Re-Use
UDI-DI (GTIN) of the sales unit	4057605101454
Serial number guided	Yes
Batch number guided	No
Sales unit of measure	Piece

Height	218 mm
Width	390 mm
Depth	460 mm

Power connection	220 – 240 V ±10 %; 50 / 60 Hz
Classification	IIa
Protection class	I
Mark of conformity	CE 0297
Sound level	Max. 60.0 db(A) in TURBO mode
Type of protection	IP 2X
Power consumption	220–240 V, max. 900 VA
Suction power of device	750 l/min ±10%
Activation	Manually via button on front panel
Interfaces	USB
Application class	Defibrillator-proof
Main filter unit	ULPA, efficiency 99.9995% at 0.1–0.2 μm
Filter life	40 h
Electromagnetic compatibility	According IEC 60601-1-2

Brand	marVac®
Article text	marVac® smoke evacuator, 220–240 V, incl. main filter (item no. 80-060-01-04) and connection kit for major electrosurgery units

Brochures	90-230-02-12 marVac The innovative system for efficient smoke evacuation 90-302-48-10 Accessories for electrosurgery catalog
Technical accompanying documents	Instructions for use

Videos

marVac® | Handling

marVac® | Handling

Use of KLS Martin smoke evacuation

Use of KLS Martin smoke evacuation

Handling video | marVac®

Handling video | marVac®

These products match the selected product

79-225-11-04

Art. No. 79-225-11-04 Prefilter (HEPA standard), Ø 22 mm, sterile, single-use, 20 pieces

80-060-01-04

Art. No. 80-060-01-04 Main filter for marVac® and maXium® smart Vac smoke evacuator (ULPA standard)

80-060-04-04

Art. No. 80-060-04-04 Air hose, sterile, Ø 10 mm with Luer-Lock connection, length 2.5 m, 20 pieces

80-060-05-04

Art. No. 80-060-05-04 Adapter for mains current detection (ISA connection), incl. connecting cable

80-060-06-04

Art. No. 80-060-06-04 Adapter for connection to central evacuation system (Ø 22 mm)

80-060-08-04

Art. No. 80-060-08-04 Suction hose, Ø 22 mm, hose length 3 m, 20 pieces

80-060-09-04

Art. No. 80-060-09-04 Suction hose, Ø 10 mm, Luer-Lock, hose length 3 m, 20 pieces

80-091-01-04

Art. No. 80-091-01-04 MCB connecting cable (maXium® and maXium® smart Vac)

80-701-30-04

Art. No. 80-701-30-04 smartOne® HEPA filter with liquid trap, not sterile, 20 pieces

80-701-31-04

Art. No. 80-701-31-04 Y-adpater, not sterile, 20 pieces

80-811-50-04

Art. No. 80-811-50-04 Single-pedal foot switch, 3-pin plug, cable length 5 m
