Art. No. 89-700-62-04

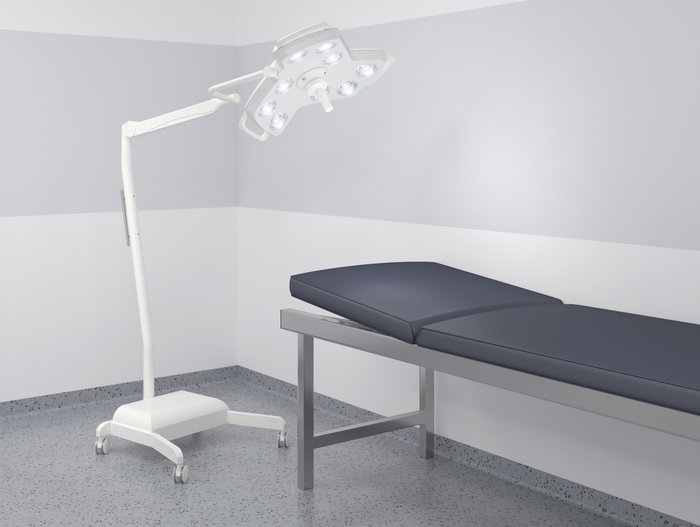

marLED® E9i Tripod, mobile operating light

Item number	89-700-62-04
Weight without packaging	55.2 kg
Sterility	non sterile
Single use product	Re-Use
UDI-DI (GTIN) of the sales unit	4057605567021
Serial number guided	Yes
Batch number guided	No
Sales unit of measure	Piece

Dimensions of luminaire body	685 mm x 630 mm x 70 mm
Wheel diameter	75 mm
Total weight	37 kg
Power module incl. mounting plate Dimensions (L x W x H)	152 x 150 x 70 mm

Classification	I according to MPG
Color temperature	3,000 K-5,500 K
Input voltage power module	50-60 Hz
Output voltage power module	30 VDC
Supply voltage at the contact block	Min. 24 VDC
Light sources	High-performance LED, arranged in 9 Light Engines
Voltage stabilization	Yes
Softstart option	Yes
Electronics fulfil the requirements of VDE and IEC	Yes
Lamp service life	60.000 h
Number of lockable wheels	2 pieces
Operating temperature	+5°C to +40°C (+41°F to +104°F) at 30–80% humidity (non-condensing)
IEC 62471: 2006 (photobiological safety)	According to risk group 2
Range of action	1281 mm
Force required for swiveling the light head	6 N
Airflow surface of the light head	2775 cm²
Light field diameter d10 (distance 1 m)	180–270 mm
Light field diameter d50 (distance 1 m)	120 mm
Illumination depth L1, L2 at 20% (from Ec max, without refocussing)	370 / 630 mm
Illumination depth L1, L2 at 60% (from Ec max, without refocussing)	250 / 300 mm
Residual illuminance with 1 shading	63 %
Residual illuminance with 2 shadings	51 %
Residual illuminance with 1 tube	99 %
Residual illuminance with 1 tube and 1 shading	62 %
Residual illuminance with 1 tube and 2 shadings	51 %
Color rendering index R9	99
Color rendering index Ra	99
Conformity to standards	IEC 60601-1, IEC 60601-1-2, IEC 60601-2-41
Height adjustment on spring arm	1,556 mm
Lowest vertical position of the light head	777 mm
Highest vertical position of the light head	2,333 mm
Operating altitude	Max. 5,000 m above sea level
Number of wheels	4
Conformity	CE
Total irradiance at 100.000 lux	347 W/m²
Total irradiance at 160.000 lux	555 W/m²
Photometric radiation equivalent (efficiency)	288 lm/W
Vibration resistance	10 – 150 Hz / 0,15 mm / 2 g
Power consumption on 100–240 VAC	70–110 VA
Power consumption on 24–36 VDC	45 W
IP protection class suspension arm system	IP 30
IP protection class light body	IP 42
Dimming of central illuminance	>30–100% (backLite 1–30%)
Central illuminance at a distance of 1 m	160.000 lx
Working range from–to (20% of Ec max, without refocusing)	630–1.630 mm
Working range from–to (60% of Ec max, without refocusing)	750-1.300 mm
Operating forces on light head	acc. to norm
Force required for moving light head up/down	14 N
Temperature for storage and transport	-20°C to +50°C (-4°F to +122°F) at 10–90% humidity (non-condensing)
UV irradiance for wavelengths 300–400 nm	0 W/m²

Brand	marLED® E9i
Article text	marLED® E9i Tripod, mobile operating light

Technical accompanying documents	Instructions for use
